h3+ MCCBs

The new gene­ration of Hager Moulded Case Circuit Brea­kers h3+ ensures reli­able prot­ection against overl­oads and short circ­uits, combined with accurate inte­g­rated energy monito­ring for all low voltage distrib­ution systems.

To the catalogue
Comptage energie electrique hager, compteurs electriques

Protect. Measure. Commun­icate.

The new gene­ration of Hager h3+ moulded case circuit brea­kers guarantees reli­able overload and short-circuit prot­ection combined with precise, inte­g­rated energy monito­ring for all low-voltage distrib­ution systems.



h3+ circuit brea­kers,
guaranteed prot­ection

Energy effic­i­ency

The best answer to the tert­iary sector energy perfo­rmance diag­n­osis.

Complies with NF C-15 100, IEC 60-364 and ISO 50 001 elect­rical standards

Opti­m­ised inte­g­ration

Compact and funct­i­onal, the h3+ solution adapts to any type of elect­rical instal­lation and allows you to respond to all the spec­ifics of your projects thanks to the increased flex­i­bility of the prot­ection sett­ings.

Security

With 6 elect­ronic triggers, protect your instal­lat­ions effic­i­e­ntly and opti­mise the cost of your elect­rical panels.

Perfo­rmance

  • Avai­lable in 6 diffe­rent sizes (x160, P160, P250, P630, h1000 and h1600)
  • Switc­hing capacity from 18 kA to 70 kA

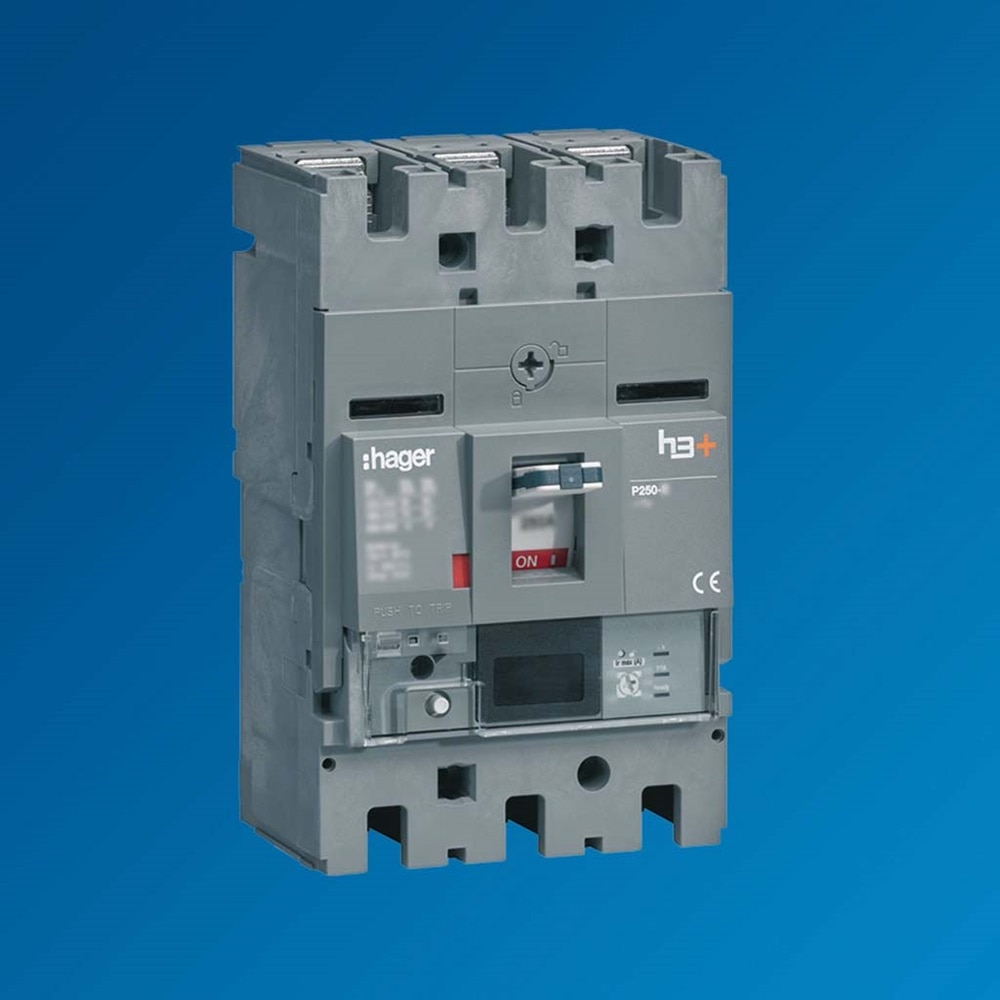

h3+ circuit brea­kers
trad­it­i­onal version

The most compact solution on the market that fits perfectly into quadro or vega D encl­os­ures.

  • From 25 to 630 A
  • Avai­lable with TM, magn­etic, LSnI, LSI or Energy
  • Secure 1/4 turn screw
  • Viewing window
  • Inte­g­rated lockout
Discover more

h3+ energy

h3+ energy is a commun­ic­ating embedded solution that allows you to measure, count and visua­lise your energy consumption data.

  • Class 1 energy monito­ring and commun­ic­ation system
  • Modbus RTU prot­ocol comp­atible
  • Inte­g­rated confi­guration of prot­ection param­eters
  • Energy consumption monito­ring
  • Alarm manag­ement
Discover more

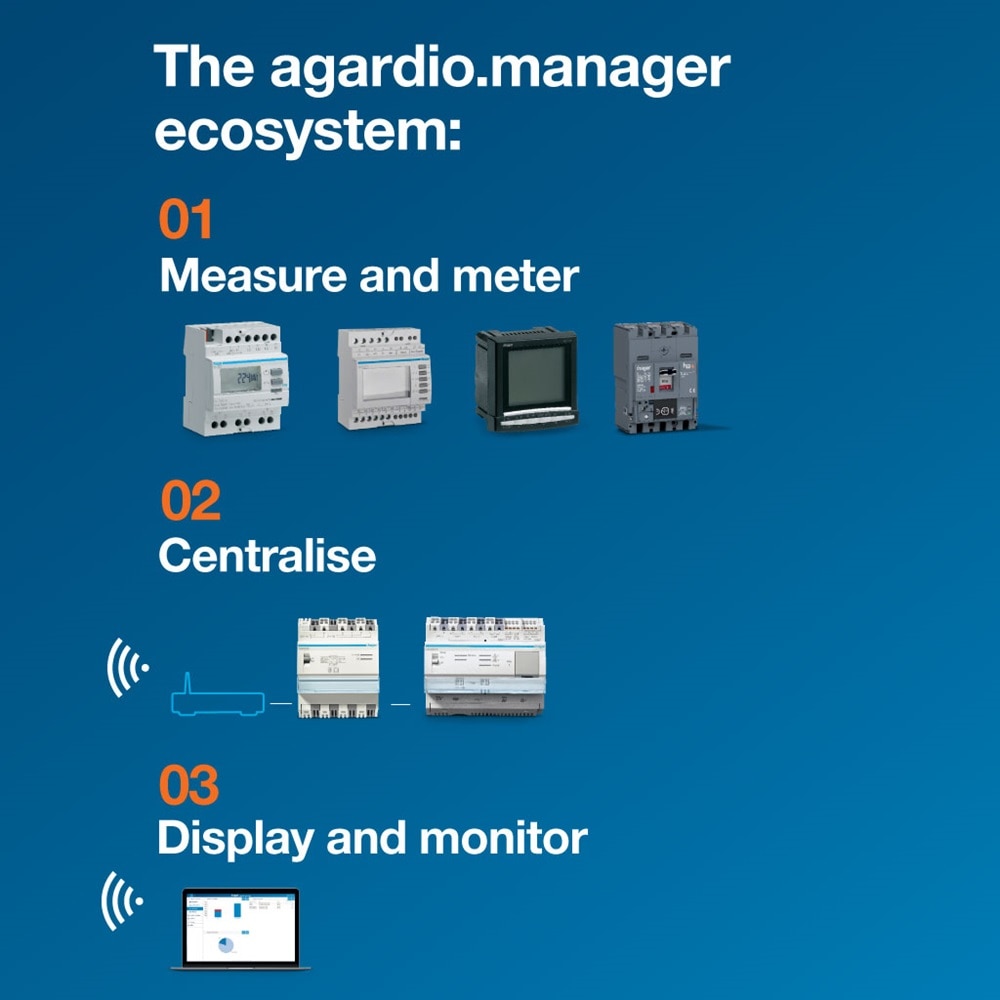

Disc­over the energy alli­ance of agardio.manager and h3+

The agardio.manager / h3+ energy alli­ance allows you to protect but also to see and commun­icate with your instal­lation. You are noti­fied immed­i­ately in the event of a blac­kout and can thus, depe­nding on the case, guarantee the mainte­n­ance of the cold chain, pres­erve the quality and comfort of living spaces.



Learn more

Why choose h3+ circuit brea­kers for your comme­rcial project?

A unive­rsal solution

The h3+ moulded case circuit brea­kers are suit­able for all types of comme­rcial buildings:

  • Offices and works­p­aces
  • Hotels
  • Shops

Suit­able for all business profiles

h3+ guarantees an effic­ient and safe instal­lation what­ever your trade:

  • Elect­rical installer
  • Panel builder
  • Inte­g­rator
  • Project manager in a design office

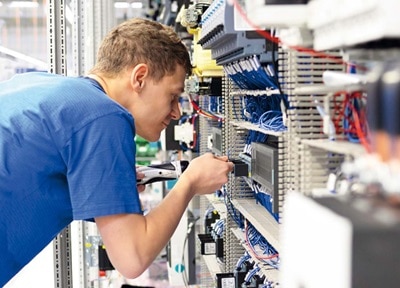

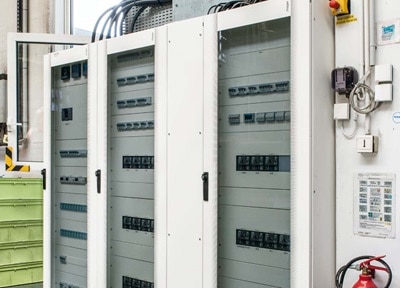

Comp­atible with Hager equi­pment

Can be inte­g­rated into quadro and vega D encl­osure systems with the aid of equi­pment kits.

The quadro+ cubicles have addit­i­onal depths of 600 and 800 mm to accom­modate devices above 630 A.

80% less instal­lation time

For maximum effic­i­ency of the system, h3+ sett­ings and confi­guration can be carried out either via web server, mobile phone, tablet or PC.

Inte­rnet
confi­guration

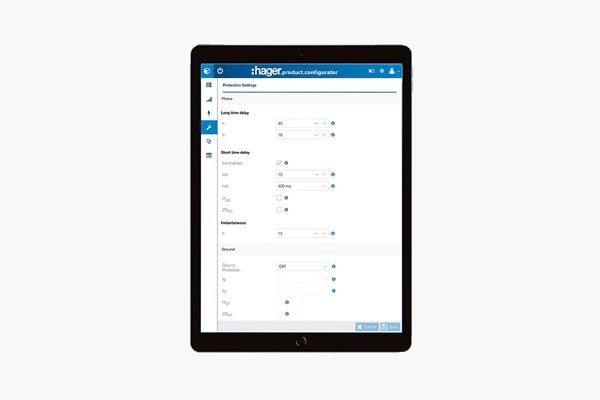

With the new confi­guration tool, you can easily confi­gure all h3 + Energy switches on a PC, tablet or smart­p­hone. Thanks to the built-in web server, you do not need any special software

Switch on the confi­guration tool

A battery is inte­g­rated into the confi­guration tool. This provides the trigger unit of the circuit breaker with power as soon as you switch on the tool. In this way, you can confi­gure the new h3+ Energy safely without a mains voltage supply.

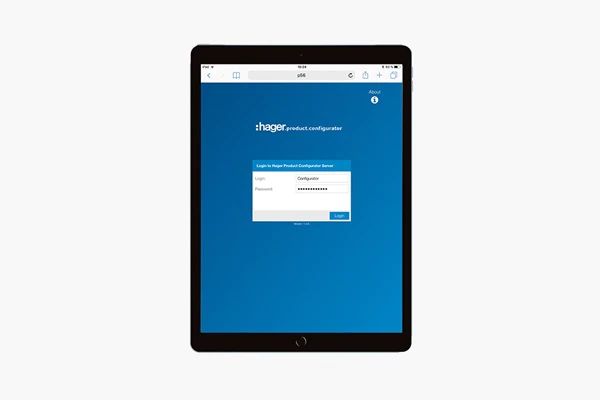

Log in via web browser

Log in with your pass­word. After login, param­eters can be confi­gured and the status can be called up easily via the browser – without special software.

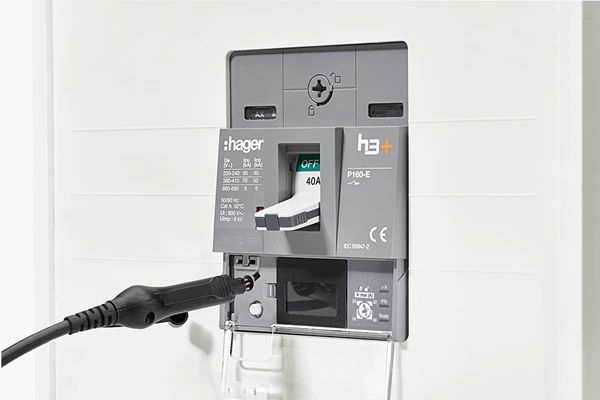

Connect the confi­guration tool

Use a conn­ection cable to connect the confi­guration tool to the inte­rface on the front of the circuit breaker. The tool can be easily fixed to the housing door using the inte­g­rated magnet on the rear of the circuit breaker – leaving you with both hands free for prog­ramming.

Confi­gure param­eters

You can now set and check param­eters such as the trigger curve of the trigger unit or the alarm confi­guration with the confi­guration tool. During operation, you can also use the confi­guration tool for diag­n­ostics and can call up all common measurements and the status, e.g. switc­hing and event history, number of switc­hing cycles, etc.

of

h3+ how-to videos

How to effic­i­e­ntly install your h3+ moulded case circuit brea­kers? Our experts will guide you through all the stages of impl­eme­nting your solution in dedic­ated tuto­rials for profe­s­s­io­nals.

Desc­ri­ptive Textarea to enter Text values......Desc­ri­ptive Textarea to enter Text values......

See h3+ how-to videos

More info­rmation about h3+ MCCBs
